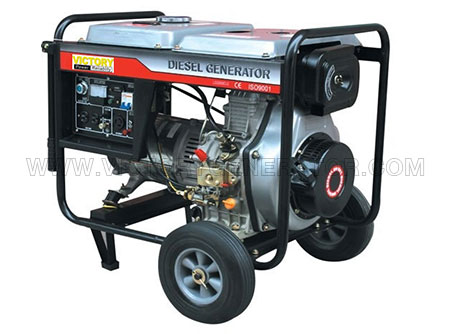

Victory always develops products from the customer's point of view, we strick to improve the performance of diesel engine,such as combustion efficiency, fuel consubption, exhaust emission, noise level, etc. Up to now, Victoy Portable Diesel Generator is widely used for a diverse range of needs, such as an emergency power source in the event of a power failure, outdoor construction work, outdoor leisure activities and for disasters and other emergencies. There are two types of Portable Diesel Generator: Open Type & silent type.The open skid mounted generator can have optional wheels and hand kits, electric start or recoil start.Victory portable diesel generator sets adopt different diesel engines and brushless generators.Generally adopt 1-cylinder & 4-stroke & air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C. Generator and CDI ignition system. The types of generator sets are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure.
Features
1. 100% Output and 100% copper wire.
2. Electromagneic type breaker to protect the generator being damaged.
3. Big enough free maintenance battery, world famous brand.
4. Packing with Strong and thick enough carton box to protect the gensets during long transporation.
5. Every spare parts suppliers are choosed extremely stricted, to control the quality well.
6. A part of spare parts are produced by ourselves, which could save cost for customers greatly.
7. Waterproof canopy ensures protection against ingress of dust and water. All Victory generators meet or exceed relevant standards for noise and emission legislation.
8. A range of industry recognized engines are used to ensure the best power source for the size of generator is used.
9. Adopt spray powder-coated painting materials to keep the generator non-corrosive in extreme environmental conditions
Technology
Frequency 50Hz, 3000RPM, Single-phase voltage 220V, 230V, 240V, etc.
Three-phase voltage 380V/220V, 400V/230V, 415V/240V, etc.
Frequency 60Hz, 3600RPM, Single-phase voltage 120V, 127V, 277V, etc.
Three-phase voltage 208V/120V, 220V/127V, 480V/277V, etc.
Power Factor: 1.0
Protection Standard: IP21-IP23
Model of Connection: 1 phase 2 lines, 3 phase 4 lines
Insulation Grade: H
Power Range: 2KW-5.5KW
Starting System: Recoil or Electric
Govern System: Mechanical
Air cleaner: Dual element
Rotor & Stator: 100% Copper wire
Fuel Tank: 8~10 hours continuous running under full load.
Soundproof Canopy: Waterproof canopy ensures protection against ingress of dust and water, and at same time, it can effectively reduce the noise
Easy folding handles: Wide, positive lock folding handles offer convenient transport and storage and a more compact unit.
Mutiple outlets for easy connection of multiple tools.
Protects the generator by shutting the engine off when low oil is detected.
ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
1.7KW~6KW 50Hz Diesel Portable Generator
| Generator | Model: | VDG2200CL | VDG3600CL | VDG5000CL | VDG6000CL | VDG6500CL | VDG7500CL |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | |
| Rated.AC output (KVA) | 1.7 | 2.7 | 4.2 | 4.5 | 5.0 | 5.5 | |
| Max.AC output (KVA) | 1.9 | 3.0 | 4.6 | 5.0 | 5.5 | 6.0 | |
| Voltage | 110V-240V | 110V-240V | 110V-240V | 110V-240V | 110V-240V | 110V-240V | |
| Phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase | |
| D.C. output/V-A | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 | |
| Power factor(cosΦ) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
| Alternator type | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | |
| Material of winding | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire | |
| Starting system | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | |
| Noice level at 7 M (dBA) | 79 | 80 | 82 | 82 | 82 | 82 | |
| Fuel Tank Capacity (L) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | |
| Engine | Engine Model | LA170FG | LA178FG | LA186FG | LA186FAG | LA188FG | LA188FG |
| Type | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | |
| Bore×stroke(mm) | 70*55 | 78*62 | 86*70 | 86*72 | 88*78 | 88*78 | |
| Speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Displacement (cc) | 211 | 296 | 406 | 418 | 474 | 474 | |
| Compression ratio | 20:01 | 20:01 | 19:01 | 19:01 | 19:01 | 19:01 | |
| Max. Output | 3.8HP (2.8KW) | 5.5HP(4.0KW) | 8.6HP (6.3KW) | 8.6HP (6.3KW) | 10HP (7.4KW) | 10HP (7.4KW) | |
| Rated Output | 3.4HP(2.5KW) | 5.0HP (3.7KW) | 7.7HP(5.7KW) | 7.7HP(5.7KW) | 9HP(6.6KW) | 9HP(6.6KW) | |
| Max. Torque | 9.5N.m | 11.9N.m | 18.7N.m | 21.4N.m | 21.4N.m | 21.4N.m | |
| Fuel Consumption | ≤430g/kw/h | ≤420g/kw/h | ≤400g/kw/h | ≤400g/kw/h | ≤400g/kw/h | ≤400g/kw/h | |
| Lubracation System | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | |
| Lube oil capacity (L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | |
| Dimensions | Size(LxWxH) | 610*450*500mm | 680*455*545mm | 740*475*590mm | 740*475*590mm | 740*475*590mm | 740*475*590mm |
| Net weight | 57kg | 70kg | 87kg | 88kg | 88kg | 88kg | |
| 20ft Container | 168PCS | 144PCS | 102PCS | 102PCS | 102PCS | 102PCS | |
| 40ft Container | 348PCS | 296PCS | 210PCS | 210PCS | 210PCS | 210PCS | |
| Optional Features | Handle Wheels | Yes | Yes | Yes | Yes | Yes | Yes |
| Three phase voltage | Yes | Yes | Yes | Yes | Yes | Yes |
2KW~6.5KW 60Hz Diesel Portable Generator
| Model: | VDG2200CL | VDG3600CL | VDG5000CL | VDG6000CL | VDG6500CL | VDG7500CL |
| Frequency (Hz) | 60 | 60 | 60 | 60 | 60 | 60 |
| Rated.AC output (KVA) | 2.0 | 3.0 | 4.6 | 5.0 | 5.5 | 6.0 |
| Max.AC output (KVA) | 2.2 | 3.3 | 5.0 | 5.5 | 6.0 | 6.5 |
| Voltage | 110V-240V | 110V-240V | 110V-240V | 110V-240V | 110V-240V | 110V-240V |
| Phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase |
| D.C. output/V-A | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 | 12/8.3 |
| Power factor(cosΦ) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Alternator type | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase | Self-excited,2-pole,single phase |
| Material of winding | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire | 100% Copper Wire |
| Starting system | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric |
| Noice level at 7 M (dBA) | 78 | 81 | 84 | 84 | 84 | 84 |
| Fuel Tank Capacity (L) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Engine Model | LA170FG | LA178FG | LA186FG | LA186FAG | LA188FG | LA188FG |
| Type | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine | 1-cylinder, 4 stroke, air-cooled, diesel engine |
| Bore×stroke(mm) | 70*55 | 78*62 | 86*72 | 86*75 | 88*78 | 88*78 |
| Speed (rpm) | 3600 | 3600 | 3600 | 3600 | 3600 | 3600 |
| Displacement (cc) | 211 | 305 | 406 | 418 | 456 | 456 |
| Compression ratio | 20:01 | 20:01 | 19:01 | 19:01 | 19:01 | 19:01 |
| Max. Output | 4.2HP (3.1KW) | 6.0HP(4.4KW) | 10HP (7.4KW) | 10HP (7.4KW) | 10.9HP (8.0KW) | 10.9HP (8.0KW) |
| Rated Output | 3.8HP(2.8KW) | 5.4HP (4.0KW) | 8.6HP(6.3KW) | 8.6HP(6.3KW) | 9.8HP(7.2KW) | 9.8HP(7.2KW) |
| Max. Torque | 9.5N.m | 11.9N.m | 18.7N.m | 21.4N.m | 21.4N.m | 21.4N.m |
| Fuel Consumption | ≤430g/kw/h | ≤420g/kw/h | ≤400g/kw/h | ≤400g/kw/h | ≤400g/kw/h | ≤370g/kw/h |
| Lubracation System | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed |
| Lube oil capacity (L) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| Size(LxWxH) | 610*450*500mm | 680*455*545mm | 740*475*590mm | 740*475*590mm | 740*475*590mm | 740*475*590mm |
| Net weight | 57kg | 70kg | 87kg | 88kg | 88kg | 88kg |
| 20ft Container | 168PCS | 144PCS | 102PCS | 102PCS | 102PCS | 102PCS |
| 40ft Container | 348PCS | 296PCS | 210PCS | 210PCS | 210PCS | 210PCS |
| Handle & Wheels | Yes | Yes | Yes | Yes | Yes | Yes |
| Three phase voltage | Yes | Yes | Yes | Yes | Yes | Yes |
